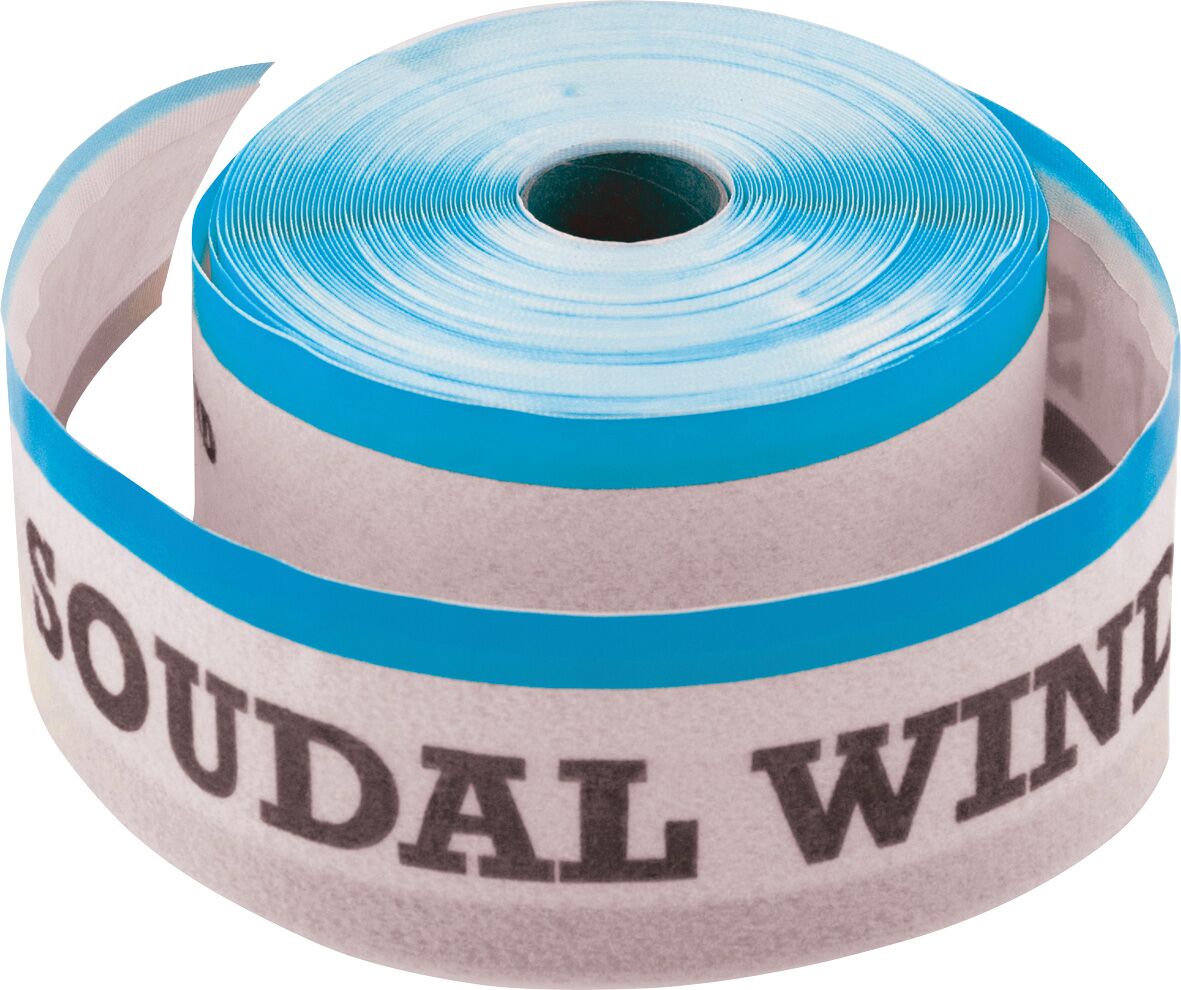

SWS Outside Tape
Add to quick accessAir- and vapour tight membrane
Air- and driving rain tight and damp-open membrane for use on the outside of window-to-wall joints. To be used in combination with SWS Inside Tape, in a so-called ‘tunnel installation’ (solid walls). Can be covered with plaster or outer facade insulation system (ETICS). Self adhesive on the window-side and equipped with a butylene adhesive strip for the initial bond on the building envelope. Must always be bonded with Soudafoil 360H.
Featured properties
- Air-, driving rain and vapour open for exterior use (can't be used as a primary water barrier)
- Sd ≤ 0,04 m
- Integral laminated PE foil to prevent delamination
- Double sided polyester cladding
- Reinforced self adhesive strip for adhesion to the window frame
- Butyl based adhesive strip for initial adhesion to the wall
- Both the membrane as the adhesive strips are resistant to uv
- Alkali resistant
- Resistant to microorganisms
- Can be plastered on both sides
Assets
TDS Soudal, SWS Outside Tape, English
Applications
- Used for general air- and driving rain tightness on the outside of window-to-wall joints.
Example of Applications
Instructions
- Depending on the installation method of the window, the placement of the airtightness tape on the outside can be done in two ways. If the window frame lies in the same plane as the outer cavity wall, 4 separate strips are used in which the blue self-adhesive strip is applied onto the visible side of the window frame. If the window frame is built into a niche, is NOT in the same plane as the outer cavity wall, there are 2 methods for applying airtightness tapes. You can work with a single strip or you can work with 4 separate strips. In both cases, apply the tape with the blue self-adhesive strip on the side of the window frame so that the printing is legible from the outside. You can also apply the tape on the front of the window frame (and flip the tape over afterwards). Ensure that the surface is dust, moisture and grease-free. The airtightness tape is also provided with a gray butyl strip which, after the window has been installed, ensures the initial bonding onto the masonry during curing of the adhesive. In order to adhere the tape in an air- and vaportight manner (for example on uneven surfaces), a suitable bonding and adhesive mastic is used, eg Soudafoil 360H. Consult the technical data sheet for further information.
