Soudafoam FR HY

Fire resistant hand held PU foam

HIGH YIELD fire rated, one component expanding polyurethane foam filler. 25% more yield than standard Soudafoam FR fire resisting foam. Rapid curing. Excellent thermal and acoustic insulation properties. Expands 35-40 times its initial volume. Excellent primerless adhesion on most construction materials. Conforms to all international standards.

Open technical data sheet

Shown product

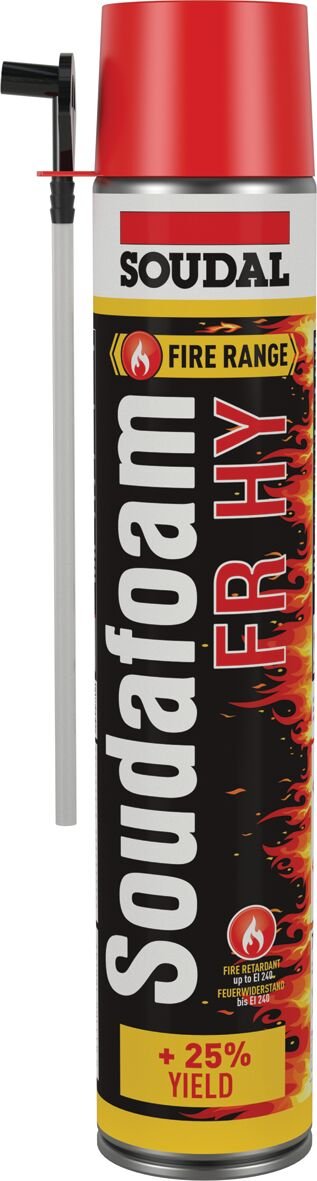

Soudafoam FR HY 750ml

Featured properties

Fire rated polyurethane expanding foam filler
EN13501-2 – Reaction to fire, class E
EN1366-4 – Fire resistance, up to 4 hours depending on joint configuration
More than 25% linear yield than Soudafoam FR
Very good acoustic properties

Assets

Main image

Technical data sheet

TDS Soudal, Soudafoam FR HY, English

Test report

Warrrington Test report WF 529939, Soudal, Soudafoam FR HY, English

Test report

Warrrington Test report WF 532889, Soudal, Soudafoam FR HY, English

Applications

For use in passive fire protection systems as a large gap filler
installation of fire retardant window and door frames
sealing of expansion and connection joints

Instructions

Shake the aerosol can for at least 20 seconds. Put the adapter on the valve. Moisten surfaces with a water sprayer prior to application. For non-conventional substrates a preliminary adhesion test is recommended. Remove pressure from the applicator to stop. Fill holes and cavities for 1/3, as the foam will expand. Repeat shaking regularly during application. If you have to work in layers repeat moistening after each layer. Fresh foam can be removed using Soudal Gun & Foamcleaner or acetone. Prior to using the Gun & Foamcleaner, test whether surfaces are affected or not. Especially plastics and lacquer or paint layers can be sensitive to this. Cured foam can only be removed mechanically or with Soudal PU-Remover.
